Energy Saving Diaphragm Jigger Ore Dressing Plant / Gravity Separation Equipment

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now

Energy Saving Diaphragm Jigger Ore Dressing Plant / Gravity Separation Equipment

  • 1
  • 2

Brand Name : Lipu

Model Number : JT1070/2

Certification : ISO9001:2008,CE,IQNet

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 90 Set/Sets per Quarter

Delivery Time : 30-45 working days after received your payment

Packaging Details : Container

Product Name : Jigger

Model : JT1070/2

Stroke coefficient : 0.5

Stroke : 0-12mm

Frequency : 0-170times/min

Capacity : 6-8t/h

Power : 2.2kw

Condition : New

Application : Mineral Ore Gravity Separation

Contact Now

Jigger Used in the Ore Dressing Plant for Mineral Ore Gravity Separation

Brief Introduction:

Jigger belongs to gravity separation equipment. It uses water as medium to separate ores and gangue

by the difference of specific density. The Max. Feed size is 8mm, while it could be 12mm for separating

placer deposit.

According to ores’ specific density, you can flexibly adjust the jigger stroke and frequency. Jigger is

widely used in gravity separation of tungsten, tin, placer gold, hematite, limonite, manganese ore,

titanium, antimony, lead, tantalum, niobium and etc.

Application:

Currently, the diaphragm jigger is the most widely used jigger. According to diaphragm place, it has

three types: upside driving diaphragm jigger, downside driving diaphragm jigger and side driving

diaphragm jigger; According to the ore size, it has coarse jigger and fine jigger. Jigging chamber is

shaped of rectangle, trapezoid and circular.

Features:

1. Energy saving, high efficiency, environmental protection;

2. The longer is trapezoidal and stroke, recovery rate is high, with great quantity;

3. With four of jigging slots, each slot of the stroke and frequency can be adjusted independently, a

wide range of particle size;

4. High stability, simple operation, easy maintenance.

Technical data:

Model

Stroke coefficient

Stroke

(mm)

Frequency

(times/min)

Capacity

(t/h)

Power

(kW)

JT1070/2

0.5

0-12

0-170

6-8

2.2

JT1515/2

0.47

0-25

0-150

20-35

2×4

JT2020/2

0.4

0-20

0-130

40-60

2×5.5

2LTC-366/8T

0.68-0.41

0-50

120-300

3-6

2×1.1

2LTC/6109/8T

0.52-0.35

0-50

120-300

20-30

4×1.5

2LTC-912/4

0.49

0-50

160-280

10-30

11

2LTC-912/4A

0.49

0-100

120-160

20-40

11

LTA55/2

0.5

0-25

250-350

1-5

1.5

LTA1010/2

0.5

0-25

250-350

5-15

3

LTA1515/2

0.5

0-50

200-300

30-50

5.5

LTA2020/2

0.5

0-50

200-300

40-60

7.5

AM-30

0.47

0-50

130-160

10-15

3

LTP34/2

0.58

0-27

280-340

2-6

1.1

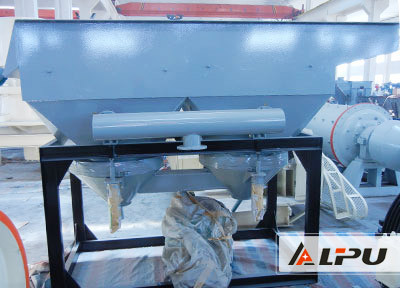

Product Picture Show :

Energy Saving Diaphragm Jigger Ore Dressing Plant / Gravity Separation Equipment
